BD Diesel Xtruded Auxiliary Transmission Oil Cooler Kit 1030606-5/16
Automatic Transmission Oil Cooler
Xtruded Auxiliary Transmission Oil Cooler Kit
Xtruded Auxiliary Transmission Oil Cooler Kit; 5/16in. Tubing; Incl. Cooler/Brackets/Wiring Harness/Fittings/Temp Sensor/Sensor Adapter/Hoses/Bypass Frt/Rear Tube Eliminator/Hdw;
- 22 Percent More Cooling Over Other Designs
- Pre-Wired Loomed Harness w/Fuse And Relay w/Plug In Connectors
- 12 Months or 24000 Mile Warranty

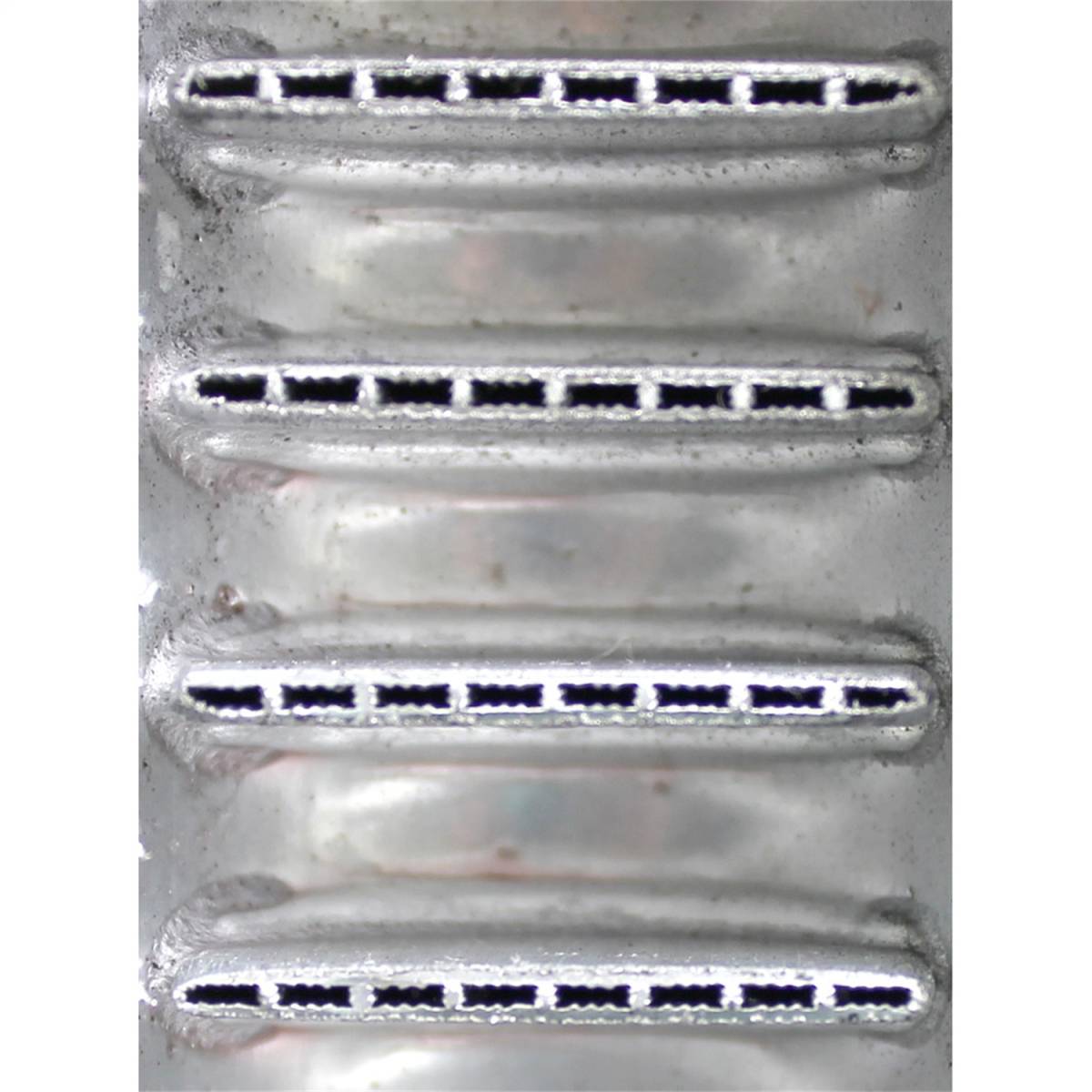

- 200 Micro Extruded Passages
- Large Surface Area To Transfer Heat For External Air Flow Cooling
- Turbulent Oil Flow Design Promotes a More Complete Cooling
- Large 5/8-inch Ports Prevents Inlet/Outlet Restriction
- Furnace Brazed Rails Have Been Tested to 300psi of Pressure
- Thermostatically Controlled 80-watt 10-inch 800 CFM Electric Fan
- 33930 BTU/HR

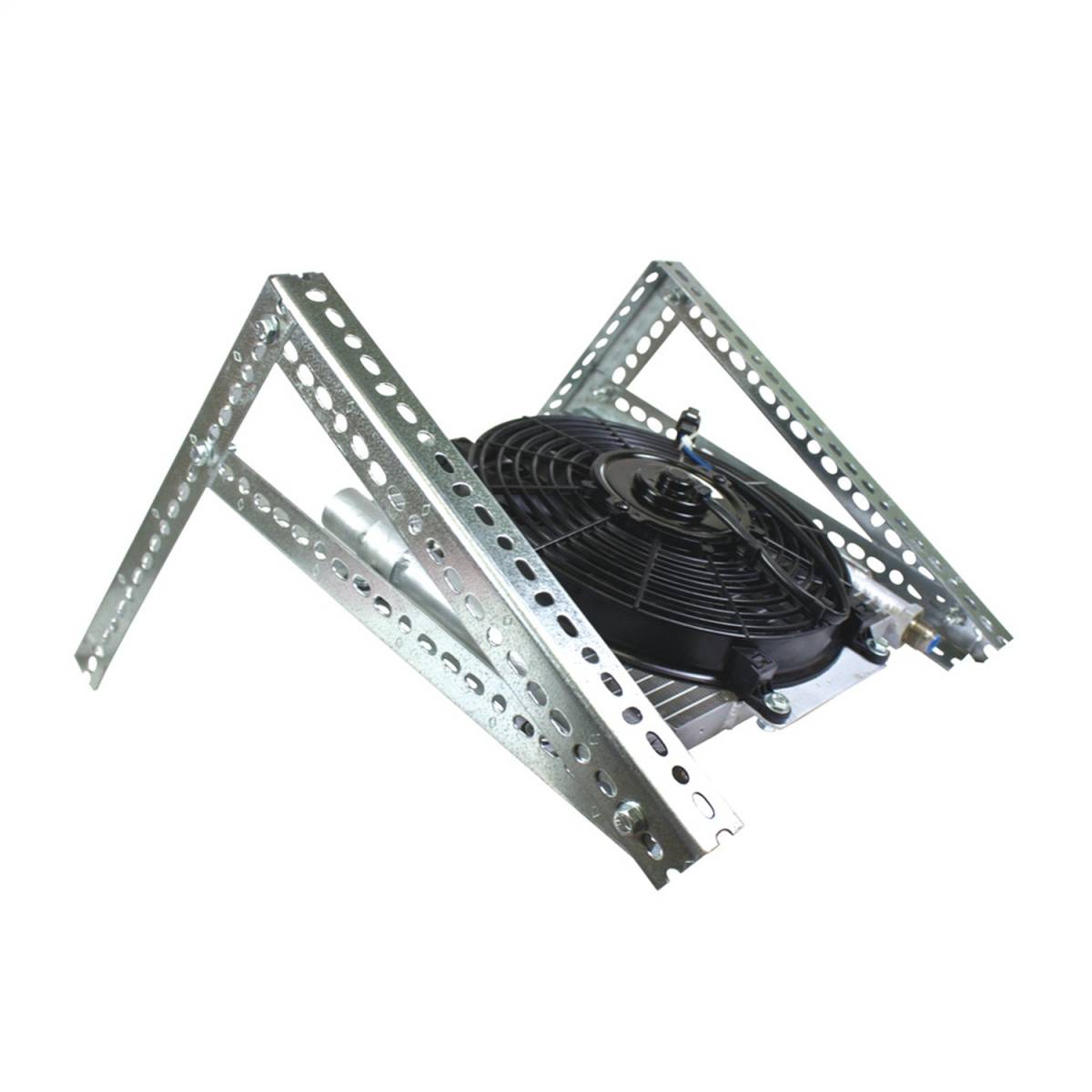

- Build-It-Yourself Galvanized Bracket Kit For Quick Installation
- Item Requires Shipping
- 18.0 lbs.
- W15.0000” x H8.0000” x L18.0000”
