GM All Lights On Module 2003-2007 Select Models Fleece Performance - FPE-GM-ALO-37

Brighten up your driving experience with this simple upgrade inside your fuse box. Simply install the GM All Lights On Module to allow your high-beams, low-beams and fog lamps to simultaneously illuminate the road ahead.

Once installed the GM All Lights On Module will turn on the high-beams, low beams and fog lamps when you turn on your high-beams. When the high-beams are not turned on your low-beams and fog lights will function normally.

Add the supplied spade terminal to provide a signal ground when the high-beams are turned on. This will allow you to control an accessory relay with the high-beam switch.

Warning: The spade terminal signal ground is NOT intended to provide a high amperage ground. It is only rated for a signal ground that will control a relay.

Fitment Guide:

• 2003-2007 Classic 2500-3500 Silverado/Sierra

Installation:

• Remove the relays labeled: FOG LP, HDLP-LOW, DRL, HDLP-HI

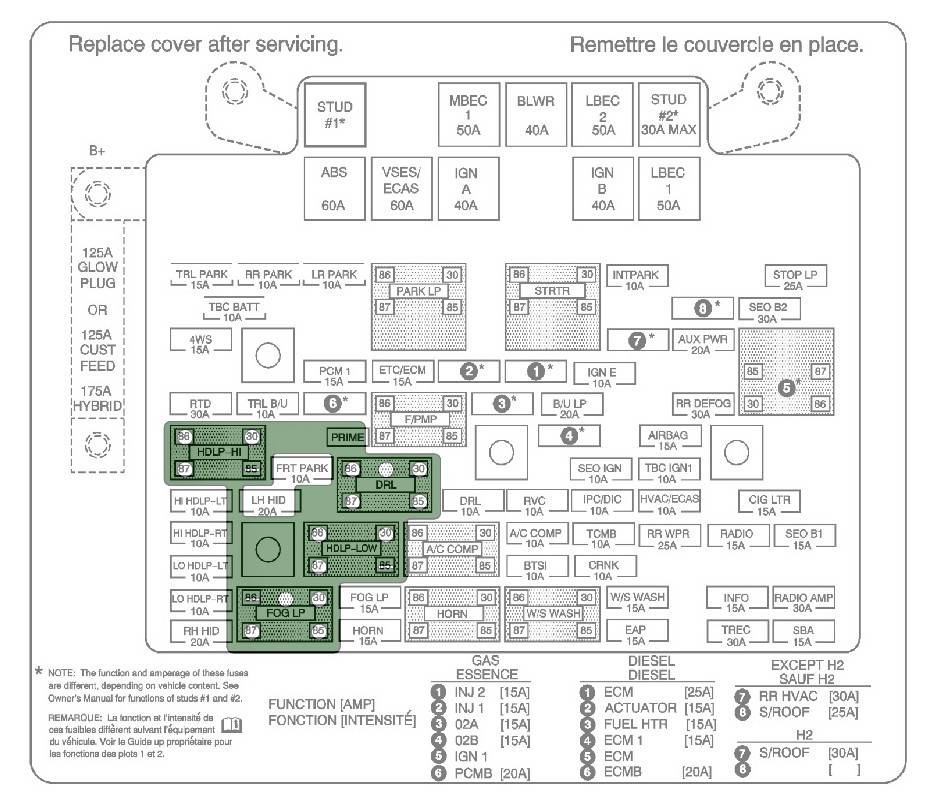

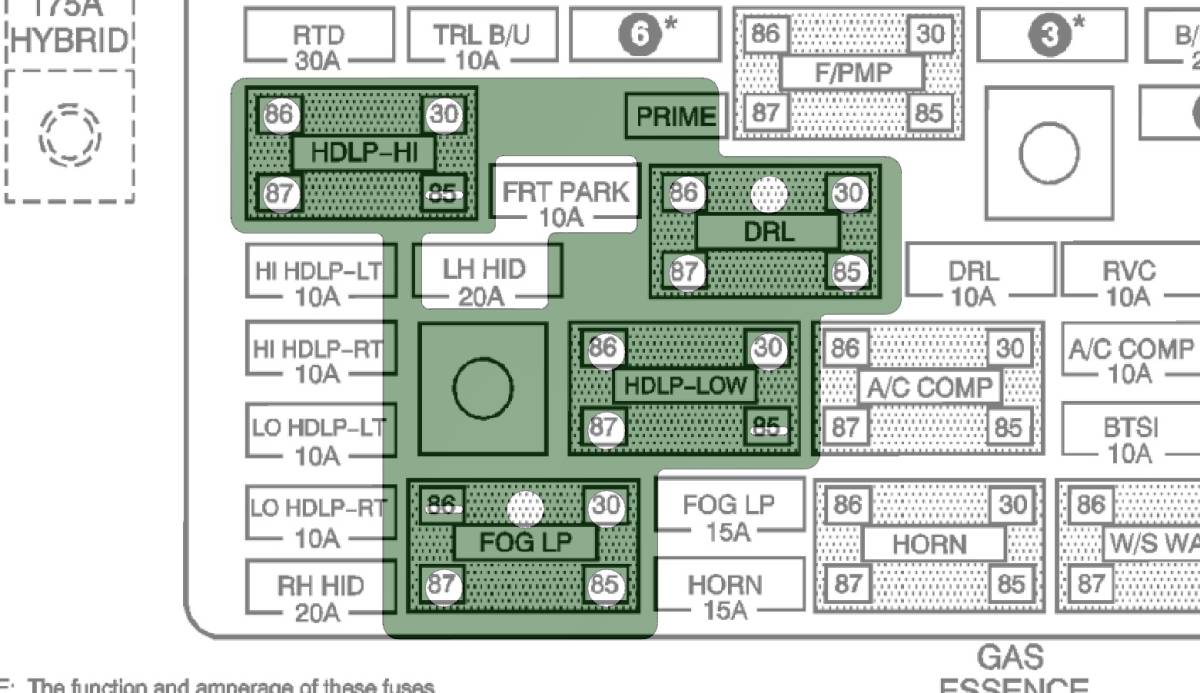

• Lay the GM All Lights On circuit board in the location shown below
• Reinstall the four relays back into their original location
