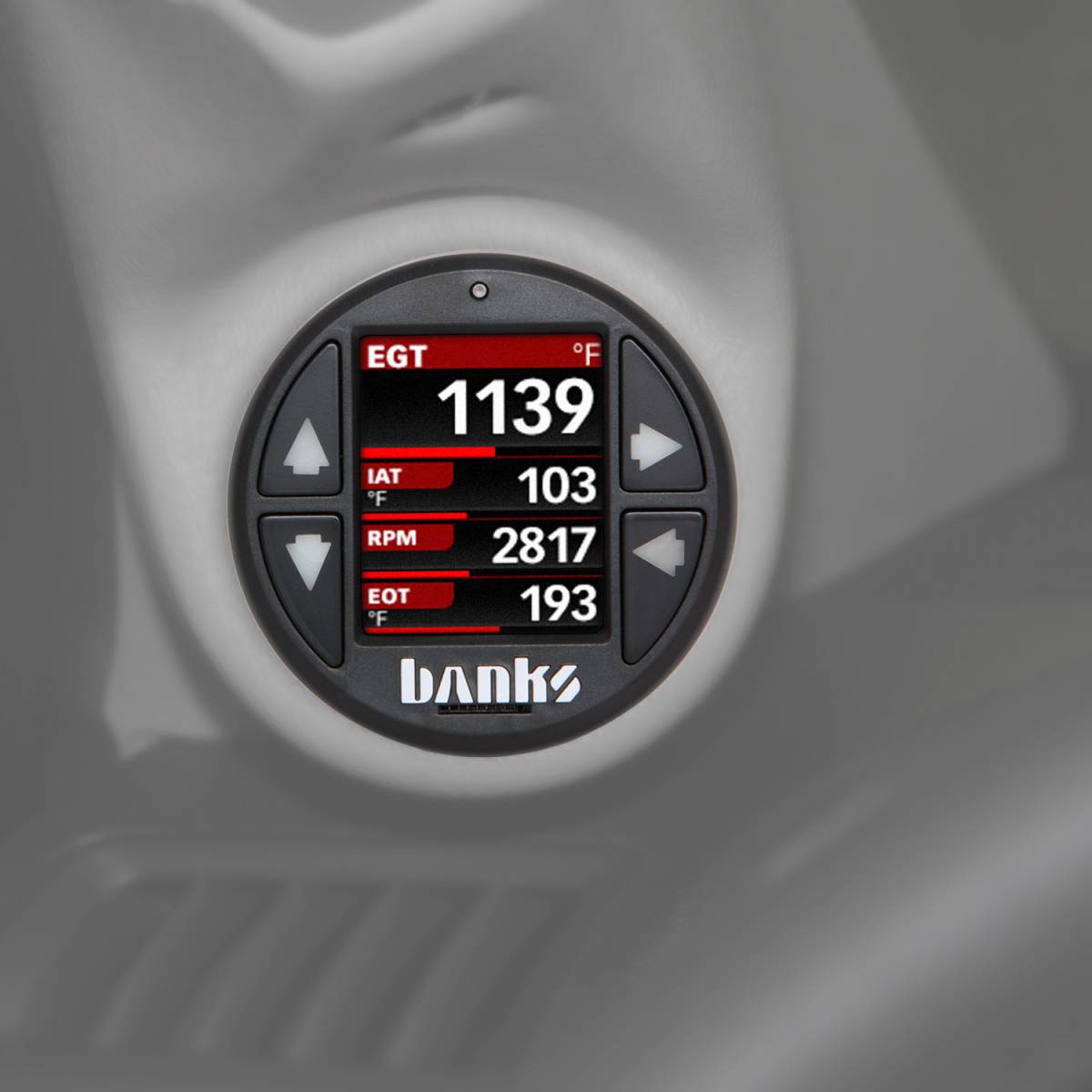

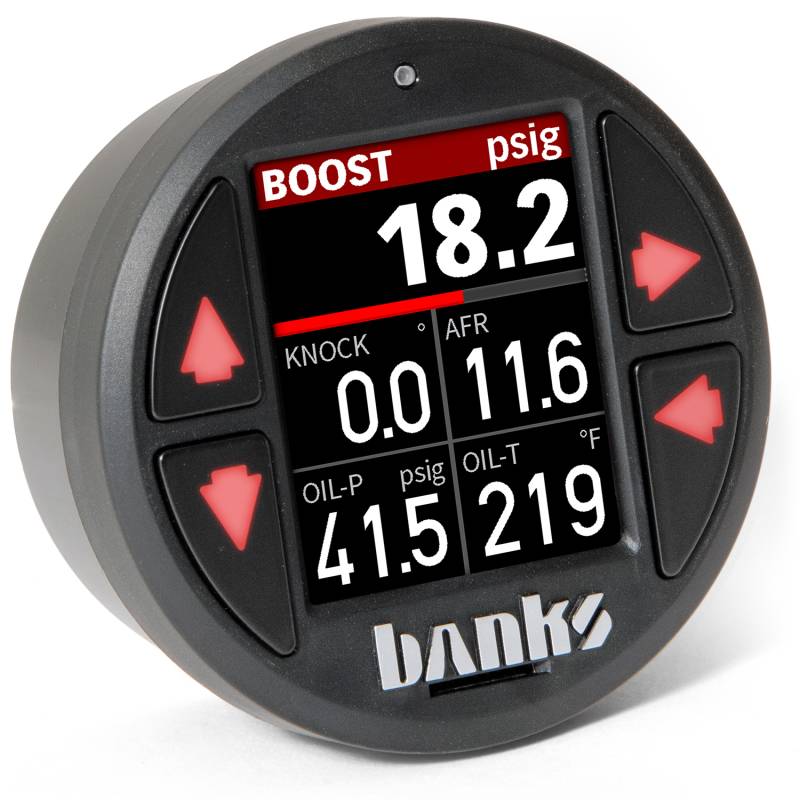

iDash 1.8 Super Gauge OBDII CAN Bus Vehicles Stand-Alone Banks Power

Electronic Multi Purpose Gauge

66560
Pricing: $295.00
Qty:

Description

Banks iDash is the smallest, most powerful plug-n-play OBD-II monitor and control interface on the market. With its easy-to-read 2- to 8-gauge user-selectable LCD display, the iDash reads a multitude of engine parameters and internal data directly from the vehicle's ECM via OBD-II. It also opens a whole new world of Banks' exclusive calculated parameters not available on any other device. Set custom low and high alerts for any engine parameter. Monitor max and min values for a user-selectable list of parameters. Read and clear trouble codes on-the-fly. Customize the navigation button and LCD display colors, brightness, and even the rate at which they dim at night.

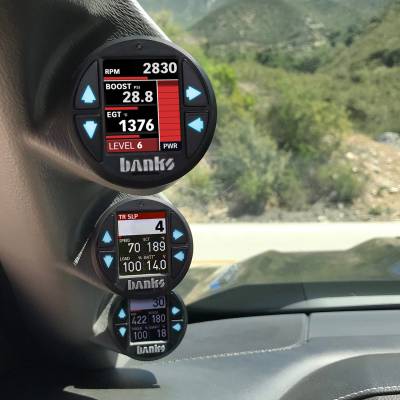

Daisy chain 4 iDash gauges and view up to 32 parameters simultaneously. Add Banks sensor modules such as the 4-channel analog module, 4-channel thermocouple module, and AirMouse Ambient Air Density Module for nearly infinite vehicle and weather analysis.

Expand functionality with Banks Modules (Pressure/Temp Sensors, and more).

  • Customizable gauge display
  • Read Boost Pressure, EGT and so much more
  • Avoid costly repairs by monitoring important sensors
  • Display 2-8 values
  • Read up to 80 OBDII Mode 01 values
  • Over 300 parameters available
  • View Data your dash does not display
  • Displays accurate values your OEM dash gauges filter
  • Includes patented OBDII Density (exclusive to Banks)
  • Log up to 20 min/max values
  • Built-in Shift and RPM Light
  • Connect multiple iDash gauges
  • Auto-Dimming Feature
  • Fits standard 52mm (2-1/16 inch) gauge mounts
  • Features vary by application

Emissions Compliant: E.O. Not Required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
  • W8.7500” x H4.0000” x L11.2500”
